Products Description
The Anti-Drone Defense System is a professional, integrated security solution for detecting, identifying, tracking, and neutralizing unauthorized UAVs. Also known as a Counter-Drone System or Counter-UAS Defense Solution, it combines multi-sensor detection (radar, radio frequency, and electro-optical), AI-based drone identification, adaptive jamming, and centralized command-and-control software to deliver full-chain airspace protection-while minimizing interference with legitimate civilian communications. Manufactured in China and compliant with international standards including CE, FCC, ISO 9001, and ICAO safety requirements, the system offers long-range surveillance, high-precision classification, multi-target mitigation, and intuitive operation. It is widely deployed at airports, government facilities, large public events, military bases, and critical infrastructure such as nuclear power plants and oil refineries, helping B2B and government clients secure restricted airspace, prevent drone intrusions, and maintain operational continuity.
Products Specification
|
Parameter Category |
Specifications |
|
Core Modules |
Multi-sensor Detection Module, AI Identification Module, Adaptive Jamming Module, Centralized Management Module |
|
Detection Performance |
- Target UAV Type: Micro (≤2kg), Small (2-25kg), Medium (25-150kg) - Detection Range: Radar: 0.5-8km; Radio Frequency (RF): 0.3-5km; Visual: 0.2-2km - Detection Accuracy: ≥98% (for UAVs within effective range) - Response Time: ≤3s - False Alarm Rate: ≤1% |
|
Identification Performance |
- Identification Metrics: UAV model, flight altitude, speed, flight path - Identification Accuracy: ≥95% (for common commercial UAV models) - Supported UAV Protocols: DJI, Parrot, Autel, Yuneec (compatible with mainstream brands) |
|
Jamming Performance |
- Jamming Bands: 2.4GHz, 5.8GHz (for UAV control signals); 1.575GHz (for GPS/GLONASS positioning signals) - Jamming Range: 0.3-3km (adjustable power) - Jamming Modes: Directional (for precise targeting), Omni-directional (for multi-target coverage) - Civil Signal Protection: Built-in frequency filtering to avoid interfering with 4G/5G, Wi-Fi, and aviation communication signals |
|
Management Functionality |
- Multi-target Handling: Simultaneous detection & jamming of ≤8 UAVs - Data Storage: ≥6 months (detection logs, jamming records, UAV trajectory) - Remote Control: Support PC/APP real-time monitoring & parameter adjustment - Alarm Modes: Visual (screen alert), Audible (buzzer), SMS/Email notifications |
|
Environmental Adaptability |
Temperature: -30℃ to +65℃ - Relative Humidity: ≤95% (non-condensing) - Wind Resistance: ≤12 级 (≤32.7m/s) - Protection Level: IP66 (outdoor modules); IP54 (indoor controller) |
|
Power Supply |
- Main Power: AC 220V/110V (50/60Hz) - Backup Power: Lithium-ion battery (≥4h standby for critical modules) - Power Consumption: Detection module ≤80W; Jamming module ≤200W (directional mode)/≤350W (omni-directional mode) |
|
Dimensions |

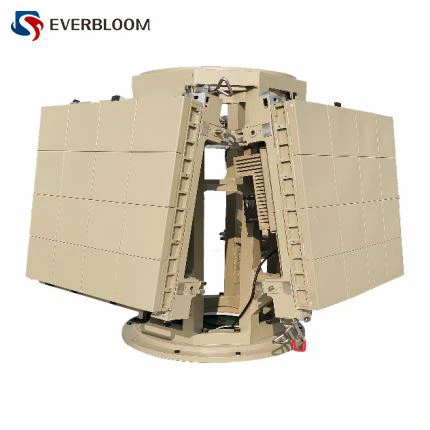

- Radar Detection Unit: 600mm×500mm×300mm - RF Detection Unit: 300mm×250mm×150mm - Jamming Unit: 400mm×350mm×200mm - Central Controller: 500mm×400mm×180mm |
|
Weight |
- Radar Detection Unit: 35kg - RF Detection Unit: 8kg - Jamming Unit: 22kg - Central Controller: 15kg |
|
Communication Interface |
Gigabit Ethernet, 4G/LTE, Wi-Fi 6, RS485 (for local module expansion) |
Features
Multi-Sensor Integrated Detection

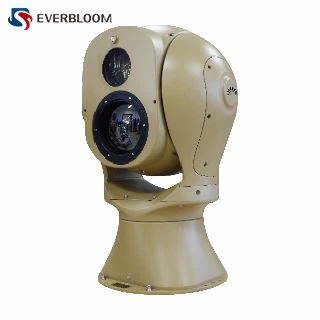

Combines long-range radar, RF signal monitoring, and electro-optical verification to form a three-layer detection network. This architecture eliminates blind spots for low-altitude, small, or signal-shielded UAVs and delivers over 98% detection accuracy within the effective coverage area.
AI-Based High-Precision UAV Identification
Powered by deep-learning algorithms that analyze flight behavior, communication protocols, and visual signatures. The system identifies UAV models, altitude, and speed while assessing potential threats such as payload-carrying drones, achieving ≥95% classification accuracy and minimizing false alarms from authorized civil UAVs.
Adaptive & Civil-Safe Jamming Technology
Supports adjustable output power with directional and omnidirectional modes for precise countermeasures. Built-in frequency-filtering and electromagnetic-compatibility design prevent interference with 4G/5G, Wi-Fi, and aviation navigation systems, ensuring compliance with international EMC standards.
Multi-Target Simultaneous Mitigation
Capable of detecting and neutralizing up to eight UAVs concurrently, making it ideal for complex intrusion scenarios such as large-scale events and border protection. High-risk targets approaching restricted areas are automatically prioritized for rapid response.
Rugged Design & Rapid Deployment
Outdoor detection and jamming modules meet IP66 protection ratings and operate reliably in temperatures from -30°C to +65°C. The modular architecture enables fixed installations for airports and mobile deployment for temporary events, with two operators able to complete setup within two hours.
Advantages
Leading Technical Expertise
Mastering multiple core radar technologies and backed by nationally recognized certifications, the company leverages professional R&D platforms to continuously drive product innovation and enhance long-term reliability
Extensive Industry Experience
With over a decade of dedicated focus on radar technologies, the company has a deep understanding of application scenarios across multiple industries, enabling the delivery of stable, practical, and highly application-matched solutions.
Application
Critical Infrastructure
Large-Scale Events
Airports
Government Facilities
Service
Installation and Commissioning
Certified engineers provide on-site / overseas services:
Site survey (optimizing unit placem- ent based on terrain);
Equipment installation (pole-mount- ed/ wall-mounted/ground-buried);
System calibration (adjusting detecti on sensitivity and bird deterrence intensity);
Joint testing with the client's existin- g security system;
Issuance of detailed commissioning reports.
Technical Support
Digital user manuals, video tutorials;
Troubleshooting guides;
Application-oriented guidance is provided for different scenarios.
Warranty and Maintenance
3-year global warranty;
Parts malfunctions due to product quality issues can be repaired or replaced free of charge (excluding damage caused by human error or natural disasters);
fAQ
Q: What types of UAVs can the system detect?
A: It can detect micro UAVs (≤2kg), small UAVs (2-25kg), and medium UAVs (25-150kg), covering most commercial and potentially threatening UAV models.
Q: Will the jamming function interfere with civilian communication signals?
A: No, the system is equipped with frequency filtering technology that strictly avoids jamming 4G/5G, Wi-Fi, and aviation communication signals, complying with international electromagnetic compatibility standards.
Q: What is the maximum detection range of the system?
A: The radar module has a maximum detection range of 8km, the RF module 5km, and the visual module 2km-providing multi-layered coverage for different scenarios.
Q: How many UAVs can the system handle simultaneously?
A: It can detect and jam up to 8 UAVs at the same time, adapting to multi-drone intrusion scenarios.
Q: What jamming modes does the system support?
A: It supports two modes: directional jamming (for precise targeting of single UAVs) and omni-directional jamming (for covering multiple UAVs in a specific area).
Q: Is the system suitable for outdoor extreme weather?
A: Yes, outdoor modules meet IP66 protection standards, withstanding -30℃ to +65℃ temperatures, 12-level winds, and heavy rain-suitable for most climates.
Q: How long does it take to deploy the system?
A: Fixed installation takes about 8 hours for a complete set; mobile deployment (for events) can be completed within 2 hours by 2 operators.
Q: Does the system provide UAV trajectory records?
A: Yes, it stores ≥6 months of UAV detection logs, jamming records, and flight trajectories, which can be exported for audit or incident analysis.
Q: What is the warranty period of the system?
A: It comes with a 3-year global warranty, covering defects in materials and workmanship. Damage from human error or natural disasters is not covered.
