EMMC
Your eMMC Storage Solutions Manufacturer!
YOTTAWIN is a professional eMMC storage manufacturer specializing in the development and production of embedded storage solutions for consumer electronics, industrial equipment, IoT devices, and embedded applications. By combining self-developed eMMC controller technology, optimized firmware algorithms, and high-quality NAND Flash integration, YOTTAWIN delivers reliable embedded storage products with stable performance, excellent compatibility, low power consumption, and long-term supply capability. YOTTAWIN provides comprehensive consumer-grade and industrial-grade eMMC solutions, supporting BGA100 and BGA153 package options with capacities ranging from 8GB to 256GB to meet different requirements for performance, reliability, cost efficiency, and product lifecycle management.
Industrial eMMC Solutions
YOTTAWIN Industrial eMMC products are designed for demanding embedded applications requiring enhanced reliability, stable operation, and long-term availability.
Key Features
Industrial-grade reliability
Advanced NAND Flash management
Optimized firmware algorithms
Enhanced data integrity
Long lifecycle support
Typical Applications
Industrial computers

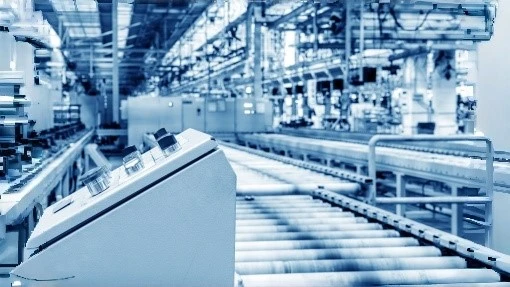

Automation equipment

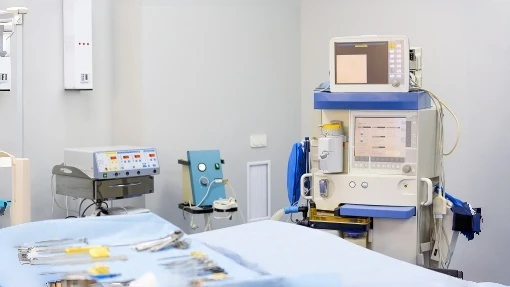

Medical devices
Embedded controllers
Edge computing systems
Transportation equipment

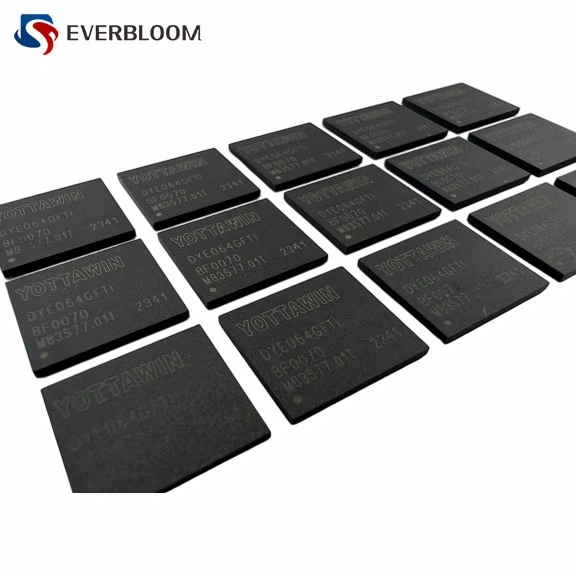

Consumer eMMC Solutions
YOTTAWIN Consumer eMMC products are optimized for consumer electronics and embedded devices requiring reliable, compact, and cost-effective storage solutions.
Key Features
FEATURE 01
BGA100/BGA153 package
FEATURE 02
Capacity from 8GB to 256GB
FEATURE 03
Low power consumption
FEATURE 04
Stable storage performance
FEATURE 05
High compatibility with mainstream processors
FEATURE 06
Suitable for large-scale production applications
Typical Applications
Smart TVs
Tablets
Smart displays

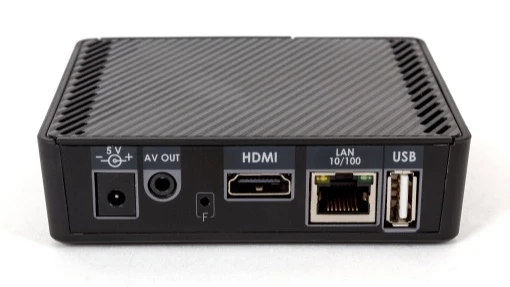

Set-top boxes

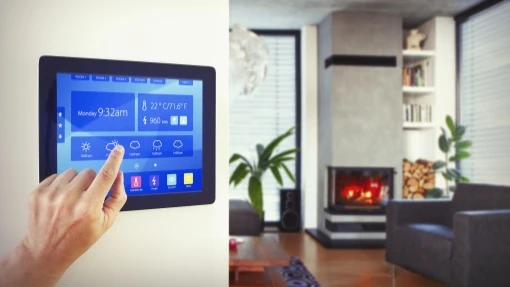

Smart home devices
Consumer IoT products
eMMC Product Selection Guide
| Interface | Nand | Package | Grade |
Dimension (mm) |
Capacity | Seq. Read/Write Speed | Operating Temperature | Datasheet |

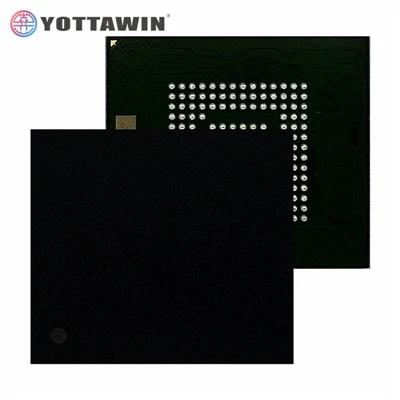

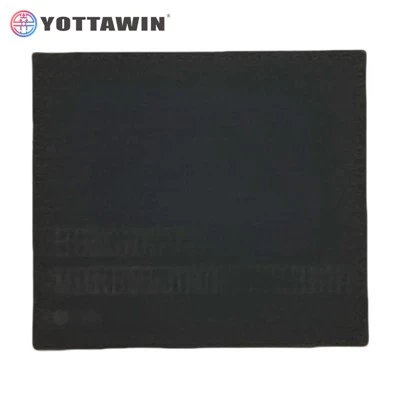

| eMMC 5.1 | 3D TLC | 153 balls | Consumer |
11.50×13.00×1.00
|
8 GB-32GB | Up to 220/120 MB/s | 0-70℃ | Download |
| 64GB-256GB | Up to 260/200 MB/s | |||||||
| 100 balls | Consumer |
14.00×18.00×1.40
|
8 GB-32GB | Up to 220/120 MB/s | 0-70℃ | Download | ||
| 64GB-128GB | Up to 260/200 MB/s | |||||||

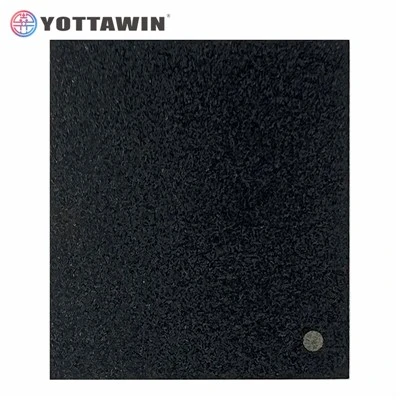

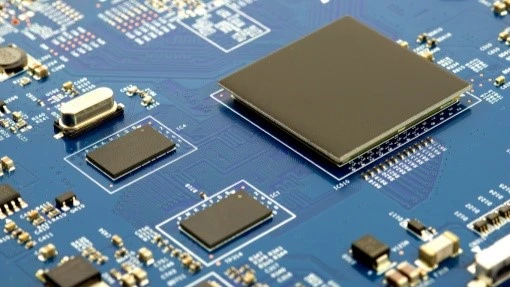

| 153 balls | Industrial |
11.50×13.00×1.00
|
8 GB-32GB | Up to 220/120 MB/s | -40℃-85℃ | Download | ||
| 64GB-256GB | Up to 260/200 MB/s | |||||||

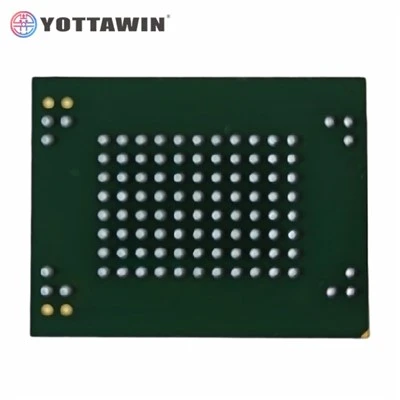

| 100 balls | Industrial |
14.00×18.00×1.40
|
8 GB-32GB | Up to 220/120 MB/s | -40℃-85℃ | Download | ||
| 64GB-128GB | Up to 260/200 MB/s |
Why Choose YOTTAWIN eMMC Solutions?
Backed by over 20 years of storage expertise, YOTTAWIN provides high-reliability Industrial eMMC solutions designed for demanding embedded applications. Featuring our proprietary controller architecture, optimized FTL algorithms, and premium YMTC 3D NAND Flash, our eMMC products deliver stable performance, enhanced endurance, wide platform compatibility, and consistent long-term supply.
Designed for industrial environments, YOTTAWIN Industrial eMMC is an ideal storage solution for industrial PCs, edge AI devices, medical equipment, rail transit systems, industrial automation, communication equipment, IoT devices, and other embedded systems requiring reliable, long-life flash storage.
Self-Developed Controller Technology
YOTTAWIN eMMC integrates proprietary controller technology and optimized firmware algorithms to deliver reliable performance, high compatibility, and enhanced data reliability.
High-Quality NAND Flash Integration
YOTTAWIN eMMC combines high-quality NAND Flash with advanced controller technology to ensure stable performance, data reliability, and long-term storage durability.
Excellent Compatibility
YOTTAWIN eMMC products are designed to support mainstream embedded platforms and application processors.
Strict Quality Control
YOTTAWIN applies strict quality management and testing processes to ensure stable performance, consistent quality, and reliable operation of eMMC products.
Flexible MOQ
YOTTAWIN provides flexible MOQ options, engineering sample support, technical consultation, and production assistance to support customers from prototype validation to mass production.
Stable Supply
YOTTAWIN ensures stable product supply through professional production management and supply chain coordination, supporting long-term availability, consistent quality, and product lifecycle management.
Our Certificate

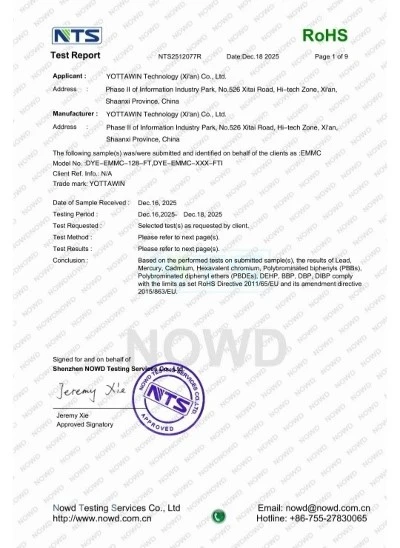

RoHS

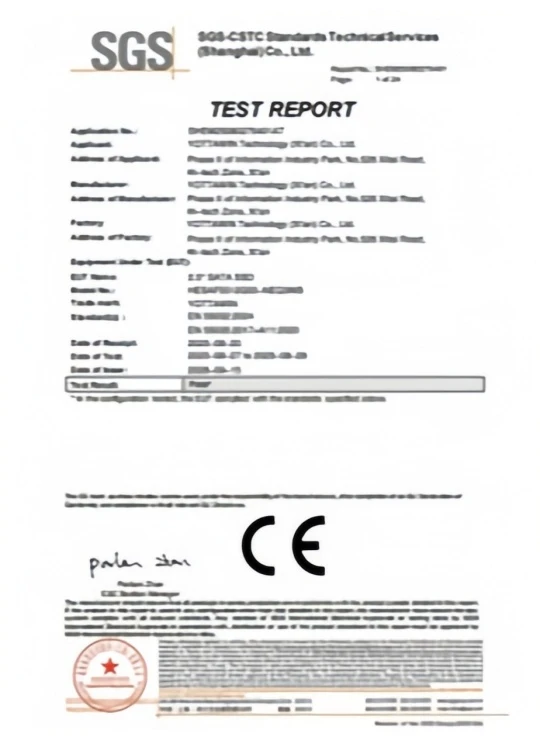

CE

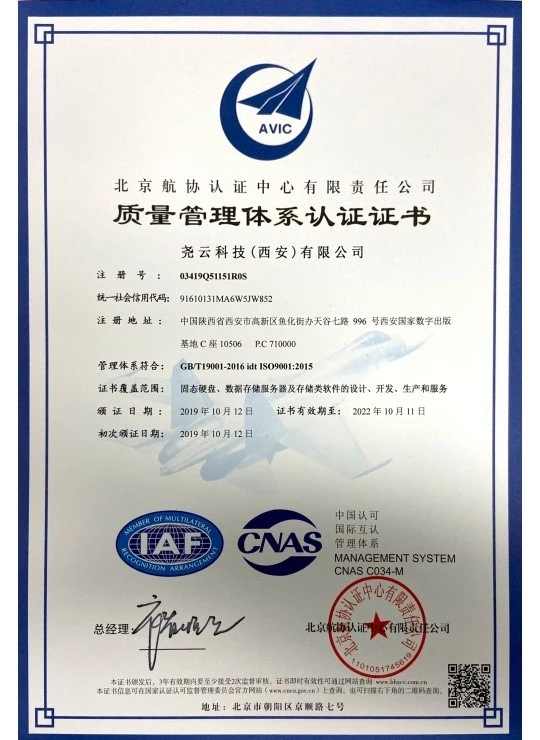

ISO

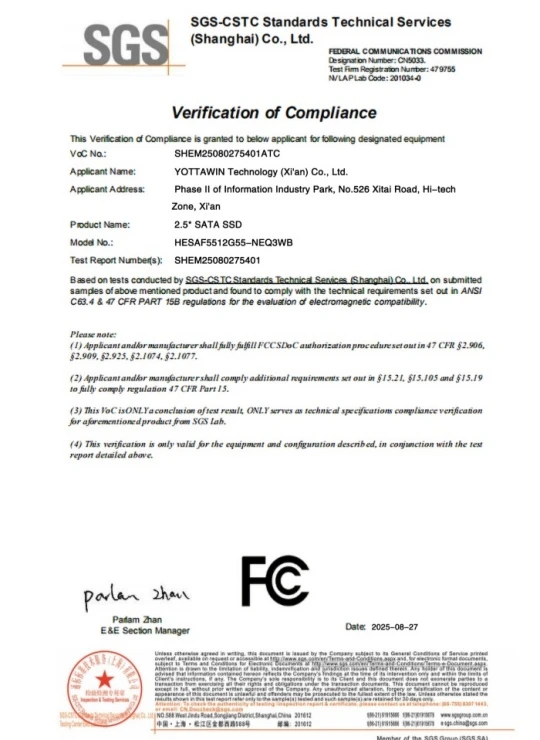

FC
eMMC Embedded Storage Technology
What is eMMC?
eMMC (Embedded MultiMedia Card) is an integrated embedded storage solution that combines NAND Flash memory, an eMMC controller, and firmware into a single BGA package.
By integrating storage management functions inside the device, eMMC simplifies hardware design and provides reliable, efficient, and scalable storage solutions for embedded applications.
eMMC Components
An eMMC device mainly consists of three key components:
| Component | Function |
|---|---|
| NAND Flash Memory | Stores operating systems, applications, and user data |
| eMMC Controller | Manages data transfer, error correction, wear leveling, and Flash operations |
| Firmware | Controls storage algorithms and improves performance and reliability |
How Does eMMC Work?
The host processor communicates with the eMMC through a standard interface.
The integrated eMMC controller manages NAND Flash operations internally, including:
Data read/write management
Error correction
Bad block management
Wear leveling
Performance optimization
This architecture allows the system processor to access storage efficiently without directly managing NAND Flash, improving system reliability and reducing development complexity.

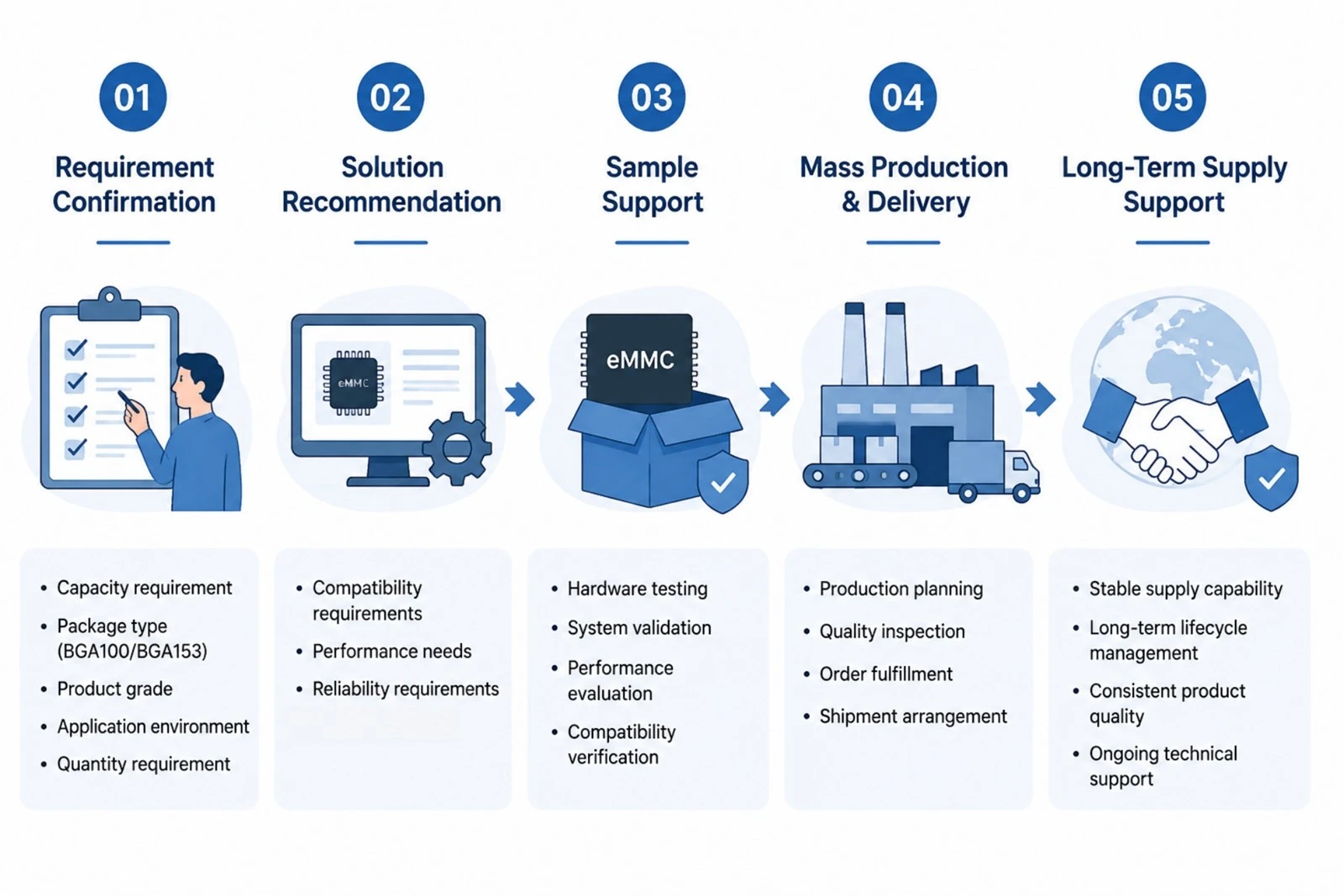

Procurement Process
Supported Functions
HS400,HS200,DDR52,SDR52
High Priority Interrupt (HPI)
Back-end operation, BKOPS control
Packed CMD, command queue
Cache,Cache Flushing Report,Cache Barrier(Optional)
Partition, partition type, RPMB, RPMB bandwidth optimization
Discard,Trim,Erase,Sanitize
Write protection, secure write protection (optional)
Lock/unlock
Power off power notification (PON), Sleep/Awake
Enhance reliability write operations
Boot feature,Boot partition
Hardware/software reset
Configurable drive capability
Compatible Platforms
|
AP vendor |
AP model P/N |
|
RockChip |
RK3126 |
|
RK3228, RK3228H, RK3229, RK328X |
|
|
RK3308, RK3318, RK3328, RK3326, RK3368, RK3368H, RK3399 |
|
|
RK3566, RK3568, RK3588,RK3506 |
|
|
RK1808 |
|
|
RKPX30 |
|
|
RV1126, RV1109, RV1108, V1107 |
|
|
MTK |
MT8163, MT8167, MT8168, MT8173 |
|
MT8735, MT8735B, MT8735M, MT8765, MT8766, MT8783, MT8788 |
|
|
MT8937 |
|
|
MT6580 |
|
|
MT6735, MT6737, MT6739, MT6753, MT6761, MT6763 |
|
|
Amlogic |
S805 |
|
S905X, S905X2, S905X3, S905W |
|
|
Allwinner |
A20, A33, H6,T3,T536 |
|
Intel |
Cherry Trail |
|
Apollo Lake |
|
|
Celeron N4000 |
|
|
Spreadtrum |
SC7731E, SC9832, SC9863 |
|
Qualcomm |
S801 |
|
Others |
Actions, VIA, InfoTMIC, Realtek, Nvidia, Hisilicon, Msta |
FAQ
Q: What is the difference between consumer eMMC and industrial eMMC?
A: Consumer eMMC is mainly designed for applications requiring cost efficiency and stable performance, such as smart devices and multimedia products. Industrial eMMC focuses on enhanced reliability, durability, and long-term availability for demanding applications including industrial equipment, automation systems, and embedded controllers.
Q: Can YOTTAWIN eMMC products be used in aerospace applications?
A: Yes. YOTTAWIN provides eMMC samples for customer testing and evaluation before mass production.Customers can contact the YOTTAWIN team to discuss sample requirements and select suitable eMMC solutions based on their application needs.
Q: What is the MOQ for YOTTAWIN eMMC products?
A: For product evaluation and prototype projects, YOTTAWIN supports small-batch orders with MOQ 100 pcs, helping customers complete product testing and system validation before mass production.

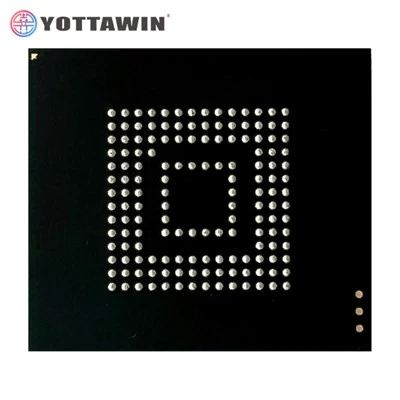

Q: What is the difference between eMMC BGA153 and BGA100?
A: BGA153 eMMC uses a 153-ball FBGA package, offering broad compatibility with embedded platforms and is widely used in consumer electronics, industrial equipment, and embedded applications.
BGA100 eMMC uses a compact 100-ball BGA package, designed for space-constrained applications such as IoT devices and compact embedded systems.
The suitable package depends on the host platform, PCB design, and application requirements. YOTTAWIN provides both BGA153 and BGA100 eMMC solutions.
