Product Description

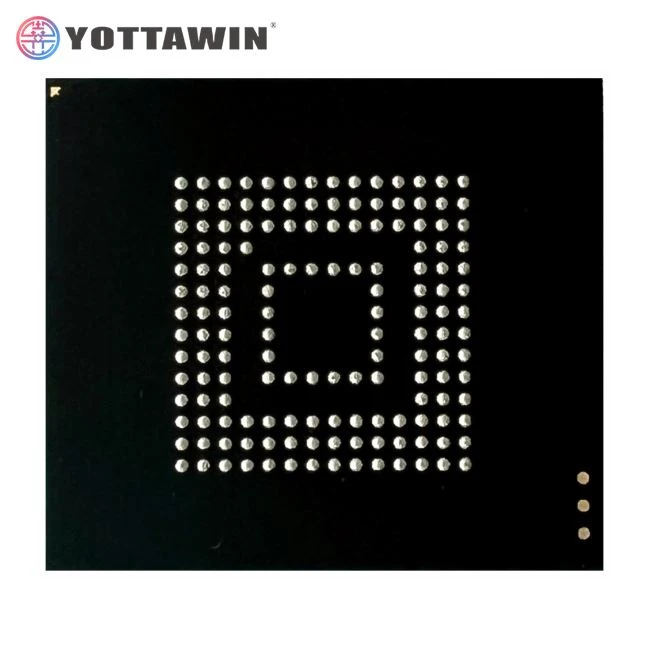

The Industrial eMMC BGA153 64GB is a high-performance industrial-grade embedded storage solution designed for long-life embedded and industrial applications. Built on the eMMC 5.1 standard, it features YOTTAWIN's proprietary YY2019 controller architecture paired with YMTC 3D NAND Flash, delivering a highly integrated storage solution with outstanding reliability, compatibility, and long-term supply stability. Leveraging YOTTAWIN's expertise in controller design and firmware development, the product supports HS400 interface speeds, advanced LDPC ECC technology, intelligent wear leveling, bad block management, and optimized power management, ensuring stable operation even in harsh industrial environments. Widely deployed in industrial automation systems, automotive electronics, medical terminals, industrial PCs, IoT gateways, and edge computing devices.
key features
Powered by YOTTAWIN's self-developed controller architecture, delivering stable performance and firmware customization support.
Equipped with YMTC 3D NAND Flash for reliable quality and stable supply.
Operating temperature range from -40°C to +85°C, designed for harsh environments.
Integrated with LDPC ECC, wear leveling, and bad block management to ensure data integrity and reliability.
Provides long-term supply support, BOM lock
Product Specification
|
Interface |
eMMC 5.1 (Backward compatible to eMMC V4.5 to V5.0) |
|
Speed Mode |
HS400 |
|
Continuous write (MB/s) |
Up to 200 |
|
Continuous read (MB/s) |
Up to 260 |
|
Random write (IOPS) |
Up to 3000 |
|
Random read (IOPS) |
Up to 3600 |
|
Capacity |
64GB |
|
Quality Assurance Standard |
GJB 7400-2011 |
| ECC | LDPC |
| Package | 153 |
| OEM / ODM | Supported |
Supported Functions
- HS400,HS200,DDR52,SDR52
-High Priority Interrupt (HPI)
-Back-end operation, BKOPS control
-Packed CMD, command queue
- Cache,Cache Flushing Report,Cache Barrier(Optional)
-Partition, partition type, RPMB, RPMB bandwidth optimization
- Discard,Trim,Erase,Sanitize
-Write protection, secure write protection (optional)
-Lock/unlock
-Power off power notification (PON), Sleep/Awake
-Enhance reliability write operations
- Boot feature,Boot partition
-Hardware/software reset
-Configurable drive capability
Compatible Platforms
|
AP vendor |
AP model P/N |
|
RockChip |
RK3126 |
|
RK3228, RK3228H, RK3229, RK328X |
|
|
RK3308, RK3318, RK3328, RK3326, RK3368, RK3368H, RK3399 |
|
|
RK3566, RK3568, RK3588,RK3506 |
|
|
RK1808 |
|
|
RKPX30 |
|
|
RV1126, RV1109, RV1108, V1107 |
|
|
MTK |
MT8163, MT8167, MT8168, MT8173 |
|
MT8735, MT8735B, MT8735M, MT8765, MT8766, MT8783, MT8788 |
|
|
MT8937 |
|
|
MT6580 |
|
|
MT6735, MT6737, MT6739, MT6753, MT6761, MT6763 |
|
|
Amlogic |
S805 |
|
S905X, S905X2, S905X3, S905W |
|
|
Allwinner |
A20, A33, H6,T3,T536 |
|
Intel |
Cherry Trail |
|
Apollo Lake |
|
|
Celeron N4000 |
|
|
Spreadtrum |
SC7731E, SC9832, SC9863 |
|
Qualcomm |
S801 |
|
Others |
Actions, VIA, InfoTMIC, Realtek, Nvidia, Hisilicon, Msta |
Application
Why Choose YOTTAWIN
With over 20 years of experience in the storage industry, YOTTAWIN specializes in delivering reliable Industrial eMMC solutions for embedded applications. Powered by our self-developed controller, advanced Flash Translation Layer (FTL) algorithms, and high-quality YMTC 3D NAND Flash, our eMMC products offer stable performance, long service life, excellent compatibility, and long-term supply support. They are widely used in industrial automation, communication equipment, medical devices, security and surveillance systems, IoT devices, and other embedded applications.
Flexible MOQ
High Reliability
Self-Developed Controller
Strong Compatibility
Quality & Reliability
Our Industrial eMMC products undergo comprehensive validation and reliability testing to ensure stable performance in demanding embedded applications.
Reliability Testing
High & Low Temperature Test
Read/Write Endurance Test
Power Cycle Test
Data Retention Test
Vibration Test
Mechanical Shock Test
Thermal Cycling Test
Compatibility Verification
Burn-in Test
Power Failure Protection Verification
Radiation Resistance Testing
Quality Certifications
RoHS
ISO
CE
FC
Ordering & Logistics
YOTTAWIN ensures every Industrial eMMC is carefully packaged and shipped to protect product quality throughout international transportation. We support flexible order quantities, fast sample delivery, and worldwide shipping to help customers accelerate project development and mass production.
Product Models
|
Part Number |
Density |
Package size |
Package Type |
|
DYE008GFTI-EX |
8GB |
11.50×13.00×1.00(mm) |
PBGA-153-Ball |
|
DYE016GFTI-EX |
16GB |
11.50×13.00×1.00(mm) |
PBGA-153-Ball |
|
DYE032GFTI-EX |
32GB |
11.50×13.00×1.00(mm) |
PBGA-153-Ball |
|
DYE064GFTI-EX |
64GB |
11.50×13.00×1.00(mm) |
PBGA-153-Ball |
|
DYE128GFTI-EX |
128GB |
11.50×13.00×1.20(mm) |
PBGA-153-Ball |
|
DYE256GFTI-EX |
256GB |
11.50×13.00×1.20(mm) |
PBGA-153-Ball |
|
DYE008GOHI-EX |
8GB |
14.00×18.00×1.40(mm) |
PBGA-100-Ball |
|
DYE016GOHI-EX |
16GB |
14.00×18.00×1.40(mm) |
PBGA-100-Ball |
|
DYE032GOHI-EX |
32GB |
14.00×18.00×1.40(mm) |
PBGA-100-Ball |
|
DYE064GOHI-EX |
64GB |
14.00×18.00×1.40(mm) |
PBGA-100-Ball |
|
DYE128GOHI-EX |
128GB |
14.00×18.00×1.40(mm) |
PBGA-100-Ball |
|
DYE256GOHI-EX |
256GB |
14.00×18.00×1.40(mm) |
PBGA-100-Ball |
FAQ
Q: What types of eMMC are available?
A: eMMC is generally available in two grades: Commercial eMMC and Industrial eMMC. YOTTAWIN Industrial eMMC BGA153 64GB is designed for embedded and industrial applications, offering wider operating temperatures, higher reliability, and long-term supply support.
Q: What is the difference between BGA153 and BGA100?
A: The main differences are package size, pin count, and application compatibility. Industrial eMMC BGA153 64GB provides more signal pins and is widely used in industrial automation, medical devices, communication equipment, and other embedded systems. BGA100 is more commonly used in compact consumer electronics with limited PCB space.
Q: What is the difference between Commercial eMMC and Industrial eMMC?
A: Industrial eMMC supports an operating temperature range of -40°C to +85°C, offering enhanced endurance, improved data integrity, and a longer product lifecycle. Commercial eMMC typically operates from 0°C to +70°C and is intended for standard consumer electronics.
Q: What is the MOQ?
A: The standard MOQ for Industrial eMMC BGA153 64GB is 100 pieces. For volume orders or OEM/ODM projects, please contact our sales team for customized pricing and delivery schedules.
Q: Are samples available?
A: Yes. We provide sample support for Industrial eMMC BGA153 64GB to help customers evaluate product performance and verify compatibility before mass production. Please contact our sales team for sample availability and delivery details.
Q: Which platforms are supported?
A: YOTTAWIN Industrial eMMC BGA153 64GB is compatible with mainstream embedded platforms, including NXP i.MX, Rockchip, Allwinner, Amlogic, MediaTek, TI Sitara, and Renesas processors that support the eMMC 5.1 specification.
