Products Description
The 2-Axis Tri-Sensor EO Gimbal Pod is a compact, stabilized imaging system that integrates three different sensors-typically an optoelectronic (daylight) camera, an infrared (thermal imaging) camera, and a low-light/near-infrared/short-wave infrared camera-into a single dual-axis gimbal.
Products specification
|
Parameter |
P90 |
P100 |
|
Weight |
≤ 500g |
< 650g |
|
Dimensions |
114 × 90 × 96 mm |
135 × 100 × 100 mm |
|
Overload resistance |
200g (vertical), 50g (lateral) |
200g (vertical), 50g (lateral) |
|
Visible camera resolution |
3840 × 2160 (4K UHD) |
3840 × 2160 (4K UHD) |
|
Visible camera FOV |
26° × 15° (16mm lens) |
26° × 15° or 17.4° × 9.8° (optional) |
|
Infrared camera resolution |
640 × 512 |
640 × 512 |
|
Infrared FOV |
17° × 14° (25mm lens) |
10.9° × 8.7° (40mm lens) |
|
Laser rangefinder range |
Up to 2000m |
Up to 1500m |
|
Laser rangefinder accuracy |
< 2m |
< 2m |
|
Stabilization range |
Pitch: -90°~+30° / Yaw: ±110° |
Pitch: -90°~+25° / Yaw: ±110° |
|
Isolation rate |
≤ 2% (3Hz/2°) |
≤ 2% (3Hz/2°) |
|
Angular accuracy |
≤ 0.2° |
≤ 0.2° |
|
EO recognition distance (AI) |
800m |
1.5km |
|
EO recognition distance (manual) |
2km |
2km |
|
IR recognition distance (AI) |
650m |
900m |
|
IR recognition distance (manual) |
1.2km |
1.5km |
|
LOS output frequency |
50Hz |
50Hz |
|
Max LOS tracking speed |
±20°/s |
±20°/s |
|
Max offset angle |
≤ 0.3° |
≤ 0.3° |
|
Power supply |
18V–32V DC |
18V–32V DC |
|
Interfaces |
RS422 / RS232 + 100 Mbps Ethernet |
RS422 / RS232 + 100 Mbps Ethernet |
Products features
Three Sensors in One Pod
Combines an EO camera, a thermal camera, and a low-light/NIR/SWIR sensor.
Clear Imaging in All Conditions
Delivers sharp daylight video, high-contrast thermal images, and enhanced low-light footage.
Long-Range Observation
Supports long-distance detection and recognition with optical zoom and high-resolution sensors.
Easy Integration
Compatible with common UAV flight controllers and ground systems. Supports UART, CAN, and Ethernet communication.
Products application
Tactical Reconnaissance

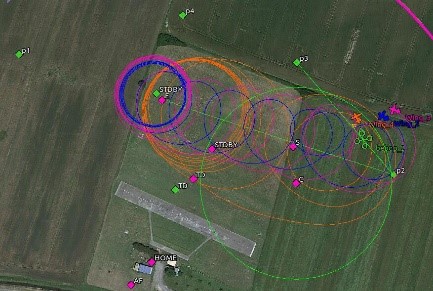

Target Tracking and Designation
Loitering Munitions Guidance
Border and Maritime Surveillance
SAR Missions
UAV -Based Smart Weapon Systems
service
Instant Response
Fast and efficient communication to answer your inquiries without delay
Expert Technical Support
Experienced engineers provide full assistance for product integration and troubleshooting
Reliable Logistics
Global shipping solutions with stable delivery timelines and real-time tracking
After-Sales Guarantee
Comprehensive after-sales service to ensure worry-free usage and long-term cooperation
FAQ
Q: What is the typical zoom capability?
A: Most EO pods support optical zoom from 10× to 30× depending on the camera module. Thermal cameras typically use fixed lenses but may support digital zoom.
Q: What is the weight range of such pods?
A: The weight usually ranges from 500 g to 1.5 kg, depending on sensor resolution and housing size. Lightweight versions are designed for small and medium UAVs.
Q: How is video output provided?
A: Output formats often include HD-SDI, HDMI, Ethernet, or IP video streams. Some pods support multi-channel output for simultaneous EO and IR streams.
Q: Can the pod support target tracking?
A: Yes. Many tri-sensor pods include onboard video processing: object tracking, motion detection, electronic stabilization, and image enhancement.
Q: Is the pod weather-resistant?
A: Most products feature sealed aluminum or composite housings with IP54–IP66 protection levels, making them suitable for light rain, dust, and outdoor operations.
